Metallic wall lamp with a curved arm, cylindrical aluminium head and acrylic (PMMA) lens diffuser with integrated LED.

Ideal to be installed on the headboard of the bedroom, for restaurant, corridor, living room, dining room, hotel, lobby and retail shop.


DRIVERS:

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

671000038 : (Max. 1x 6,1W) 24V & 350mA / 100V - 240V / Non dimmable Ø 40mm drill on dropped ceiling

671000043 : (2x6,1W) 350mA / 230V / Dimmable Triac Ø 80mm drill on dropped ceiling

671000061 : (Max. 1x10W) 350mA / 230V / Dimmable Triac Ø 45mm drill on dropped ceiling

671000056 : DRIVER DALI UPON REQUEST

(Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling



R70S.3D

Composition includes:

• 1 round canopy 113535XX4

• 3 units of T-3535C

• 3 drivers / Dimmable Triac

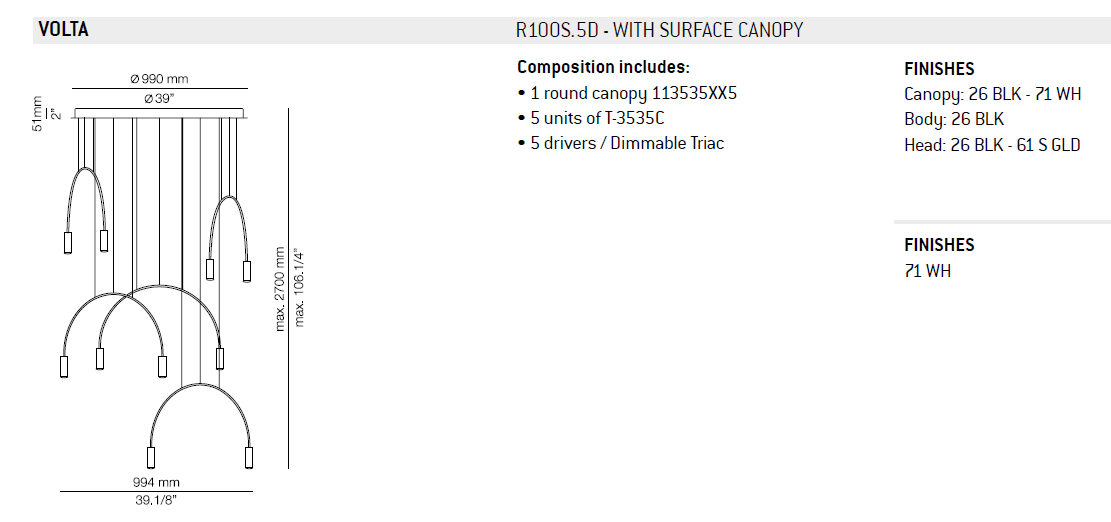

R100S.5D

Composition includes:

• 1 round canopy 113535XX5

• 5 units of T-3535C

• 5 drivers / Dimmable Triac


Please follow the links below to see the other available items in the same range:

VOLTA WALL & CEILING LIGHT [A-3533]

VOLTA TABLE LAMP [M-3537]

VOLTA SINGLE PENDANT [T-3534]

VOLTA PENDANT

VOLTA FLOOR LAMP [p-3538]

VOLTA WALL ARCH [A-353]

VOLTA ARCH [T-3535]

VOLTA ARCH COMPOSITIONS [L7]
