Open circles sketched in the air, or frames for fabric panels to soften sound. Pendant cylinders have alumimum heads and acrylic diffusers. Create your own custom suspension light combining them individually or with our selection of canopies.
Revolta offers a unique and decorative solution to soften room noise with fabric-covered acoustic panels of sound-absorptive foam. Revolta can also be used to divide large spaces into discrete areas.
Suspension lamp with a circular body and two different diameters.
Cylindrical aluminium heads and acrylic (PMMA) lens diffusers. Adjustable height. Optional decorative sound absorbing panel.
Ideal for the living room, dining room, kitchen island, bedroom, bar, restaurant, hotel and retail shop.
DRIVERS:
671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling
671000043 : (2x6,1W) 350mA / 230V / Dimmable Triac Ø 80mm drill on dropped ceiling
671000061 : (Max. 1x10W) 350mA / 230V / Dimmable Triac Ø 45mm drill on dropped ceiling
671000056 : DRIVER DALI UPON REQUEST
(Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling

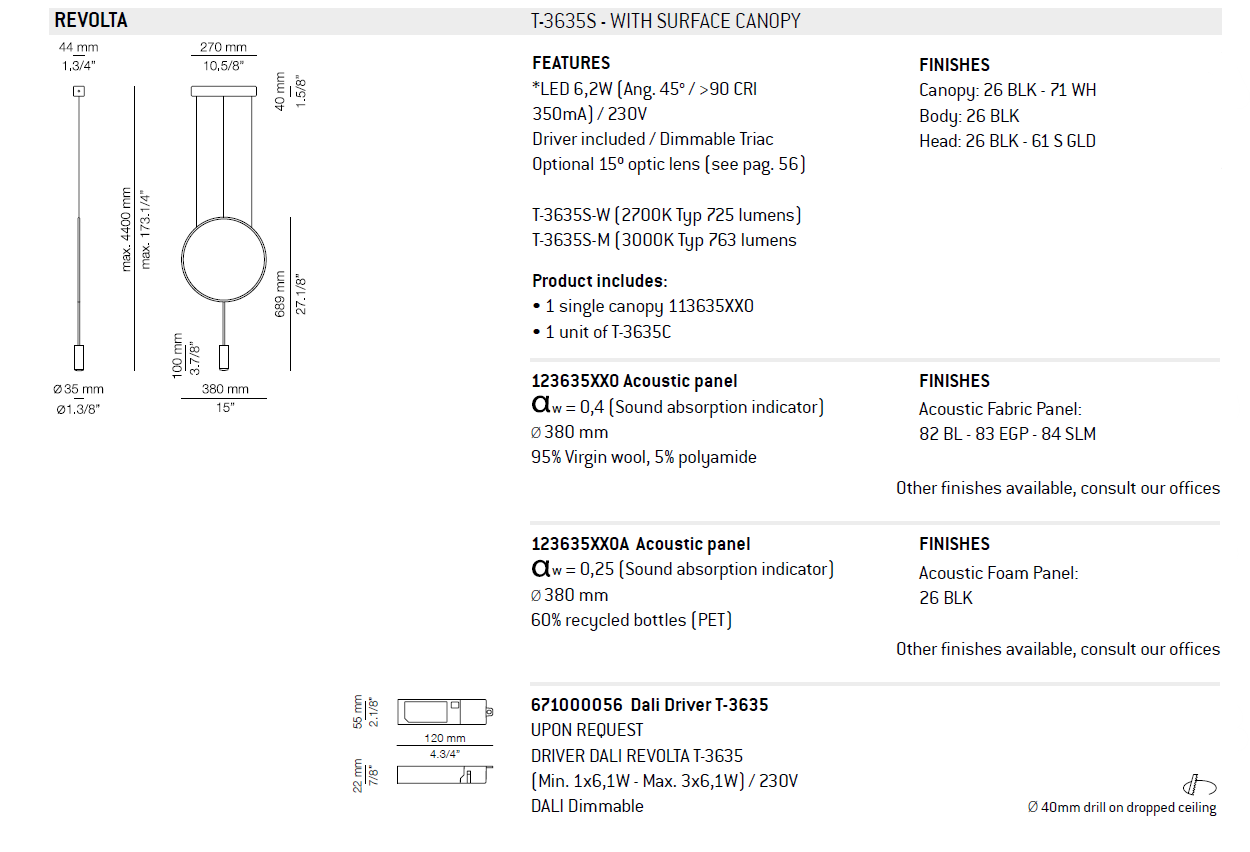

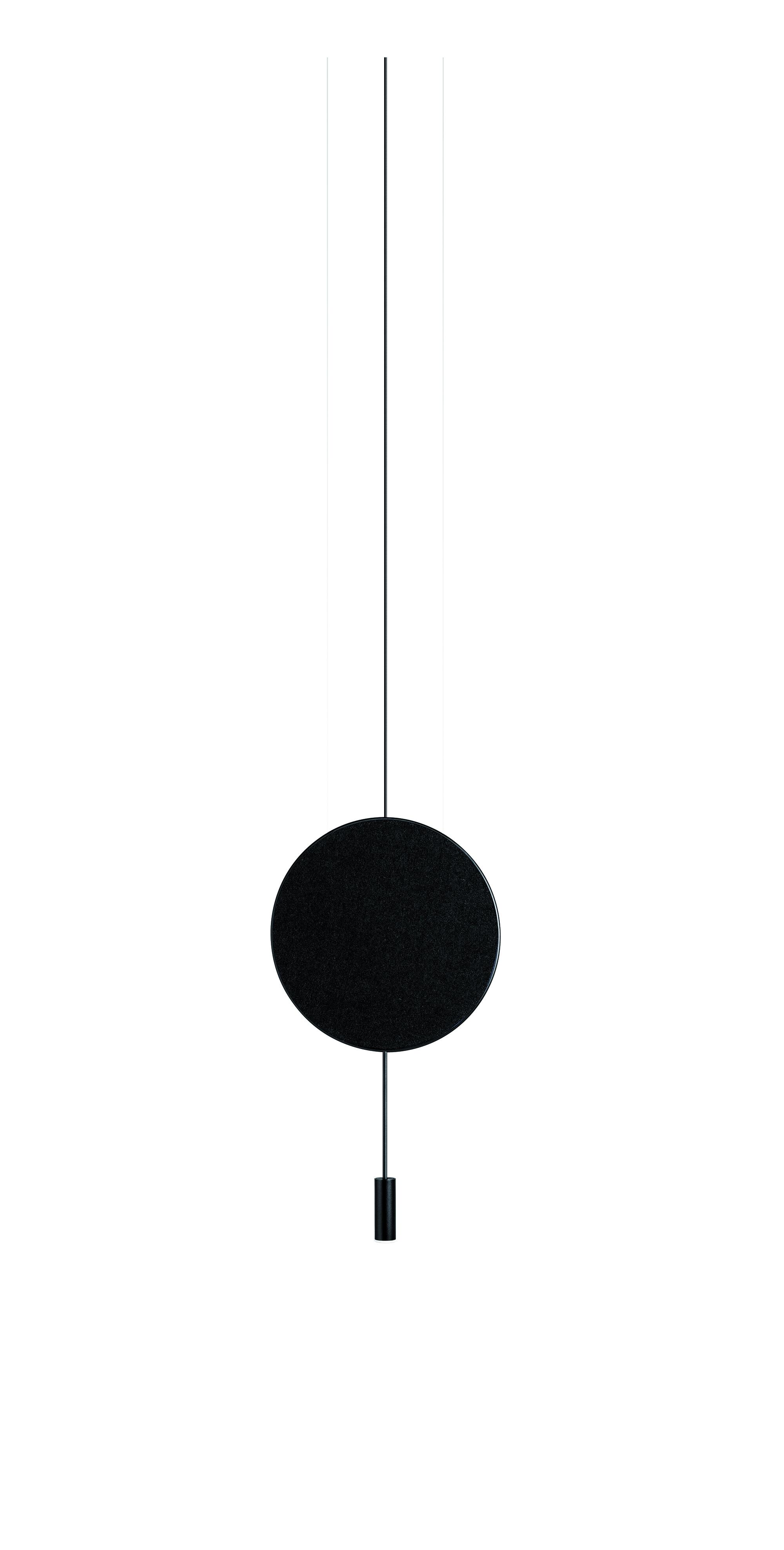

T-3635S
Driver included / Dimmable Triac
Product includes:
• 1 single canopy 113635XX0
• 1 unit of T-3635C
T-3635R
Remote driver included / Dimmable Triac
T-3635R-M (3000K Typ 763 lumens)
Product includes:
• 1 recessed canopy 113635XX0R
• 1 unit of T-3635C

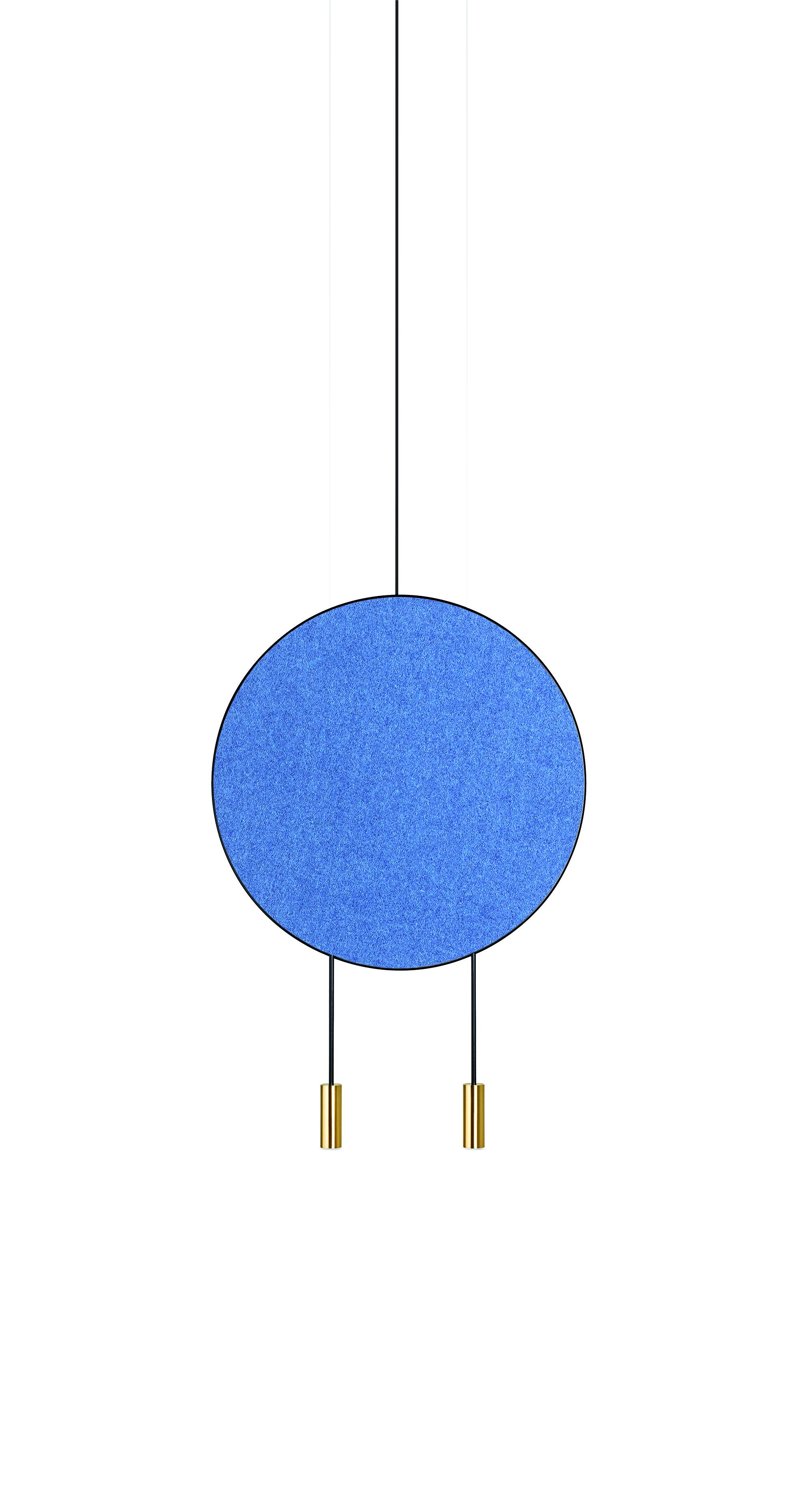

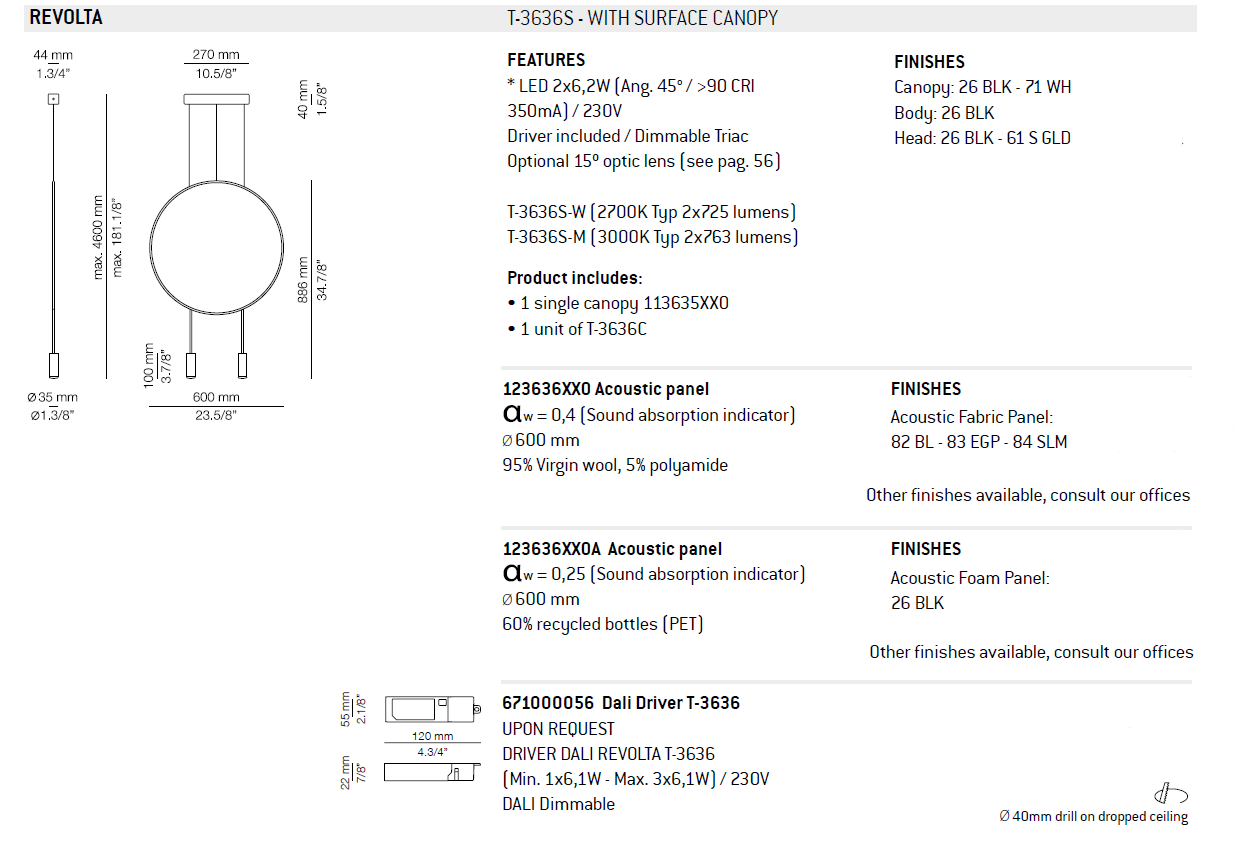

T-3636S
Driver included / Dimmable Triac
Product includes:
• 1 single canopy 113635XX0
• 1 unit of T-3636C
T-3636R
Remote driver included / Dimmable Triac
Product includes:
• 1 recessed canopy 113635XX0R
• 1 unit of T-3636C
Please follow the links below to see the other available items in the same range:
 |  |  |
| 2D FILES | 3D FILES | SPEC SHEET |
 |  |  |
| 3D MAX | BIM | INSTALLATION INSTRUCTIONS |
