Morse is a metallic suspension lamp, modular, adjustable, with a moving structure and adaptable to any space, ideal for the living room, dining room or kitchen.  The dashes of its code allow the light points to individually rotate along the metal structure to focus on what is of interest or to just blend with the backdrop. The design suspension lamp is prepared to produce direct light as well as ambient indirect illumination. Whatever the message is, the pendant Morse can communicate it by simply positioning the LED points with a simple and functional gesture.

T-3915S: Surface canopy of 30cm.

T-3915R: Recessed canopy of 12cm. False ceiling is required to place the remote driver.



DRIVERS:

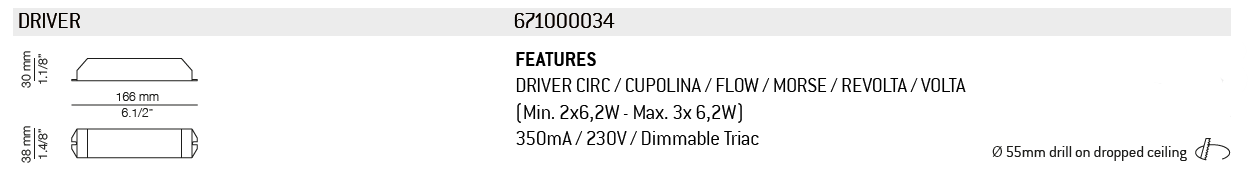

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

671000056 : DRIVER DALI UPON REQUEST

(Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling


T-3915S

Product includes:

• 1 single canopy 113924XX0

• 1 unit of T-3915

• 1 driver 671000034 / Dimmable Triac


T-3915R

Product includes:

• 1 single canopy 113534XX2

• 1 unit of T-3915

• 1 remote driver 671000034 / Dimmable Triac


More than one Morse pendant can be linked together to achieve a larger length using a union piece.

2D FILES3D FILESSPEC SHEET
3D MAXBIM
INSTALLATION INSTRUCTIONS


ESTILUZ

CATALOGUEPRICELIST
  • DESCRIPTION

    Morse is a metallic suspension lamp, modular, adjustable, with a moving structure and adaptable to any space, ideal for the living room, dining room or kitchen.  The dashes of its code allow the light points to individually rotate along the metal structure to focus on what is of interest or to just blend with the backdrop. The design suspension lamp is prepared to produce direct light as well as ambient indirect illumination. Whatever the message is, the pendant Morse can communicate it by simply positioning the LED points with a simple and functional gesture.

    T-3915S: Surface canopy of 30cm.

    T-3915R: Recessed canopy of 12cm. False ceiling is required to place the remote driver.



    DRIVERS:

    671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

    671000056 : DRIVER DALI UPON REQUEST

    (Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling


    T-3915S

    Product includes:

    • 1 single canopy 113924XX0

    • 1 unit of T-3915

    • 1 driver 671000034 / Dimmable Triac


    T-3915R

    Product includes:

    • 1 single canopy 113534XX2

    • 1 unit of T-3915

    • 1 remote driver 671000034 / Dimmable Triac


    More than one Morse pendant can be linked together to achieve a larger length using a union piece.
