by Estudi Ribaudí

Flow is a suspension lamp for interiors characterized by its stylized line gently interrupted by a smash that defines it and gives it a character of its own.

Its tubular structure and simplicity of design make it a very versatile lighting fixture, capable of naturally integrating itself into each one of the rooms.

If to this slender and elegant pendant we add the capability of creating multiple suspensions, the result is a set of lamps provided with an enormous presence and potential to fill large spaces of light, not to mention the infinite possibilities of design that contribute freedom of creation to anyone who dares to experiment with it.

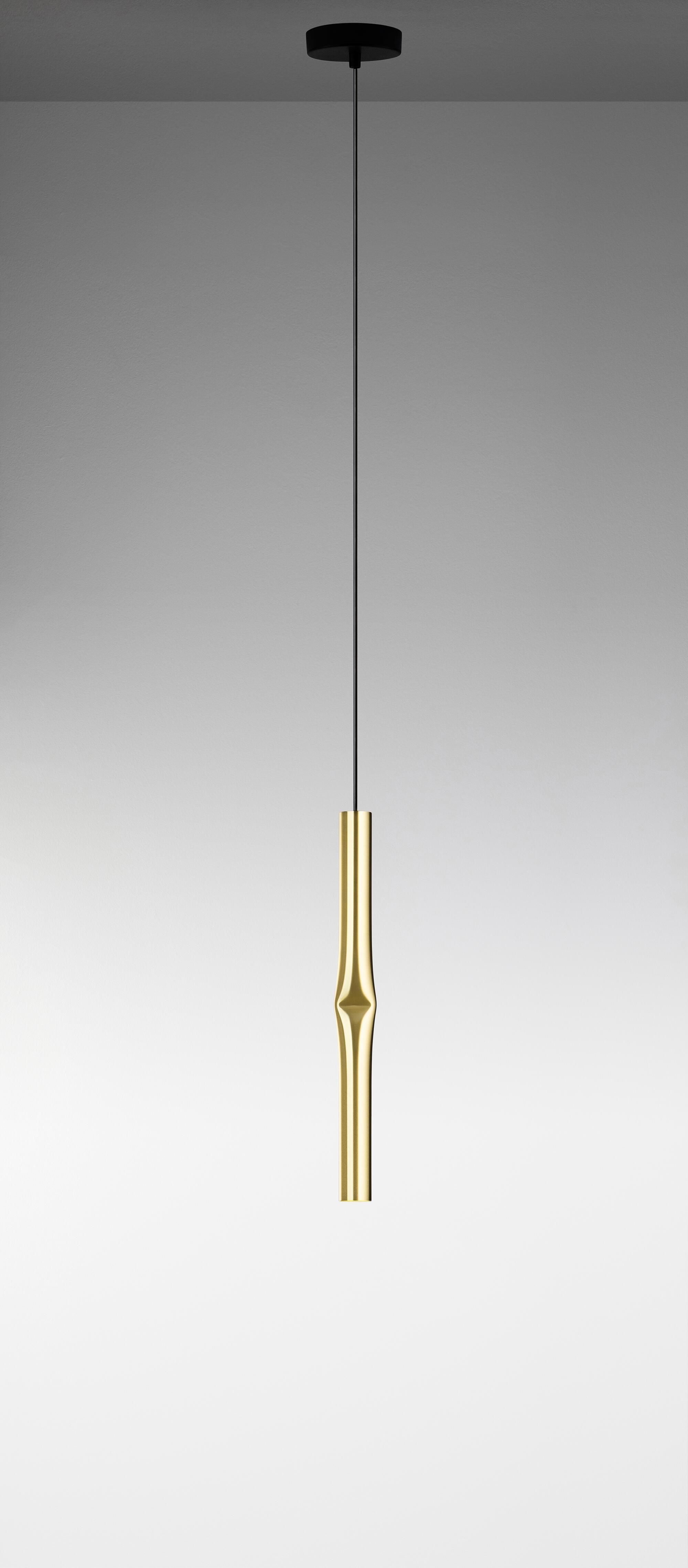

Metallic suspension lamp in three sizes. Shade made with a metal tube smashed in the middle and an acrylic lens with integrated LED. Adjustable height and individual canopy, suitable for creating compositions.

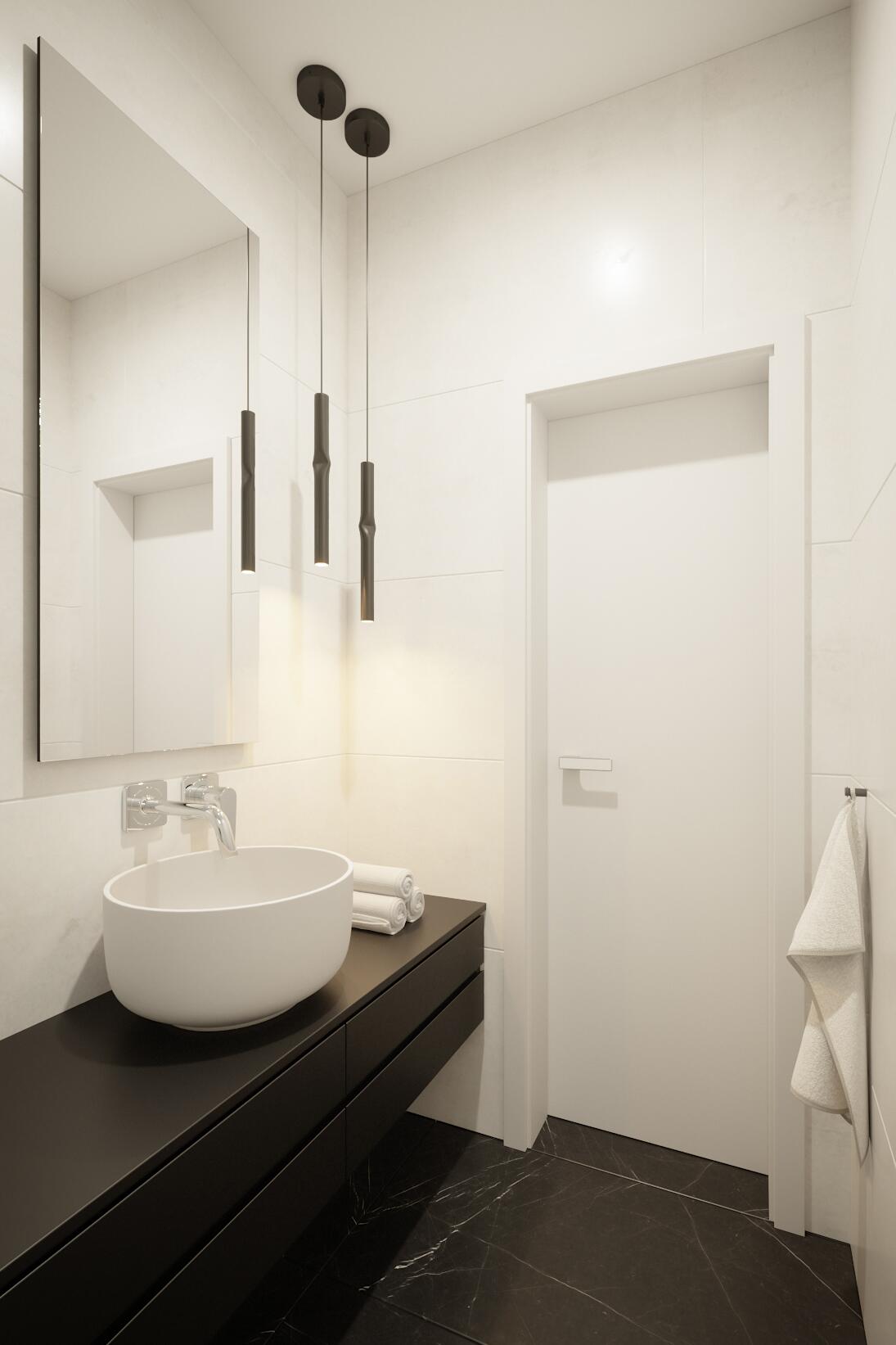

Ideal for the living room, dining room, bedroom, bar and restaurant areas, reception desk, kitchen island, counter and retail shop.





DRIVERS:

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

671000038 : (Max. 1x 6,1W) 24V & 350mA / 100V - 240V / Non dimmable Ø 40mm drill on dropped ceiling

671000061 : (Max. 1x10W) 350mA / 230V / Dimmable Triac Ø 45mm drill on dropped ceiling

671000056 : DRIVER DALI UPON REQUEST

(Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling


T-3734S

Product includes:

• 1 single canopy 113534XX0

• 1 unit of T-3734C with cable

• 1 driver 671000038 / Non Dimmable


T-3734R

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3734C with cable

• 1 remote driver 671000061 / Dimmable Triac


T-3735S

Product includes:

• 1 single canopy 113534XX0

• 1 unit of T-3735C with cable

• 1 driver 671000038 / Non Dimmable


T-3735R

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3735C with cable

• 1 remote driver 671000061 / Dimmable Triac


T-3736S

Product includes:

• 1 single canopy 113534XX0

• 1 unit of T-3736C with cable

• 1 driver 671000038 / Non Dimmable


T-3736R

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3736C with cable

• 1 remote driver 671000061 / Dimmable Triac


Please follow the links below to see the other available items in the same range:

FLOW WALL LIGHT [A-3730]

FLOW PENDENT LIGHT
