by Estudi Ribaudí

Flow is a suspension lamp for interiors characterized by its stylized line gently interrupted by a smash that defines it and gives it a character of its own.

Its tubular structure and simplicity of design make it a very versatile lighting fixture, capable of naturally integrating itself into each one of the rooms.

If to this slender and elegant pendant we add the capability of creating multiple suspensions, the result is a set of lamps provided with an enormous presence and potential to fill large spaces of light, not to mention the infinite possibilities of design that contribute freedom of creation to anyone who dares to experiment with it.

Metallic suspension lamp in three sizes. Shade made with a metal tube smashed in the middle and an acrylic lens with integrated LED. Adjustable height and individual canopy, suitable for creating compositions.

Ideal for the living room, dining room, bedroom, bar and restaurant areas, reception desk, kitchen island, counter and retail shop.






DRIVERS:

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

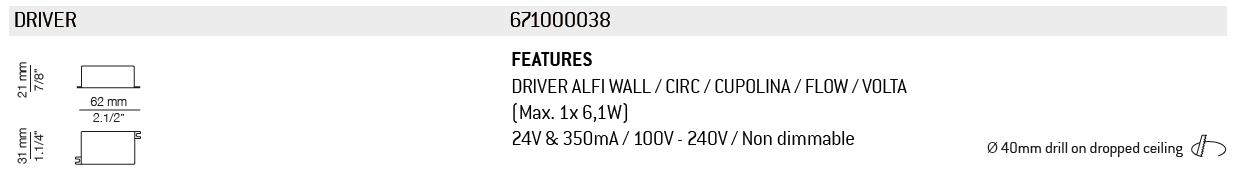

671000038 : (Max. 1x 6,1W) 24V & 350mA / 100V - 240V / Non dimmable Ø 40mm drill on dropped ceiling

671000061 : (Max. 1x10W) 350mA / 230V / Dimmable Triac Ø 45mm drill on dropped ceiling

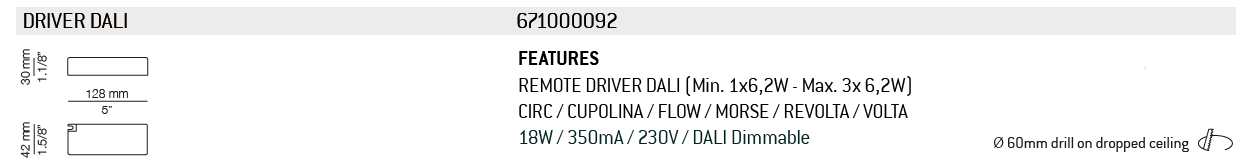

671000056 : DRIVER DALI UPON REQUEST

(Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling


L73S.3S : Up to 2 additional FLOW can be added

L92S.4S : Up to 3 additional FLOW can be added

L165S.6S : Up to 5 additional FLOW can be added


L73S.3S

Composition includes:

• 1 linear canopy 113415XX1

• 3 units of T-3734C with cable

• 1 driver 671000034 / Dimmable Triac


L92S.4S

Composition includes:

• 1 linear canopy 113415XX3

• 4 units of T-3734C with cable

• 2 drivers 671000034 / Dimmable Triac


L165S.6S

Composition includes:

• 1 linear canopy 113415XX7

• 6 units of T-3734C with cable

• 2 drivers 671000034 / Dimmable Triac


R40S.3S

Composition includes:

• 1 round canopy 113415XX6

• 3 units of T-3734C with cable

• 1 driver 671000034 / Dimmable Triac


Please follow the links below to see the other available items in the same range:

FLOW SINGLE PENDENT LIGHT [T-373]

FLOW WALL LIGHT [A-3730]

screenshot-2020-05-06-09-57-03.pngscreenshot-2020-05-06-09-57-11.pngspecsheet.jpgphotometric-curve.jpg
2D FILES3D FILESSPEC SHEETPHOTOMETRIC CURVE
3D MAXBIM
INSTALLATION INSTRUCTIONS
