These large geometric shapes, installed flush to the ceiling, are designed to merge with the interior architecture when off, and revealed through the reflected light they cast on walls and ceilings when switched on.
HEIGHT EXTENSION
Each light comes with an adjustable "stem", with a minimum height of 11.7 cm and a maximum of 13.5cm. For compositions where a shapes' overlap is planned/required, an "extension" should be purchased for the overlapped lights. This will allow a minimum height of 21.1 cm and a maximum of 22.9 cm. You can either select the extension for all the items you are adding in your selection via the option above, or you can add the extensions separately by following THIS LINK
CONNECTORS
The Puzzle Mega lights are designed to be connected to one another so that a single electrical point can be used for the whole composition. You can either select to connect ALL lights in your selection via the option above, or you can add separate connectors via THIS LINK.
FURTHER INFORMATION

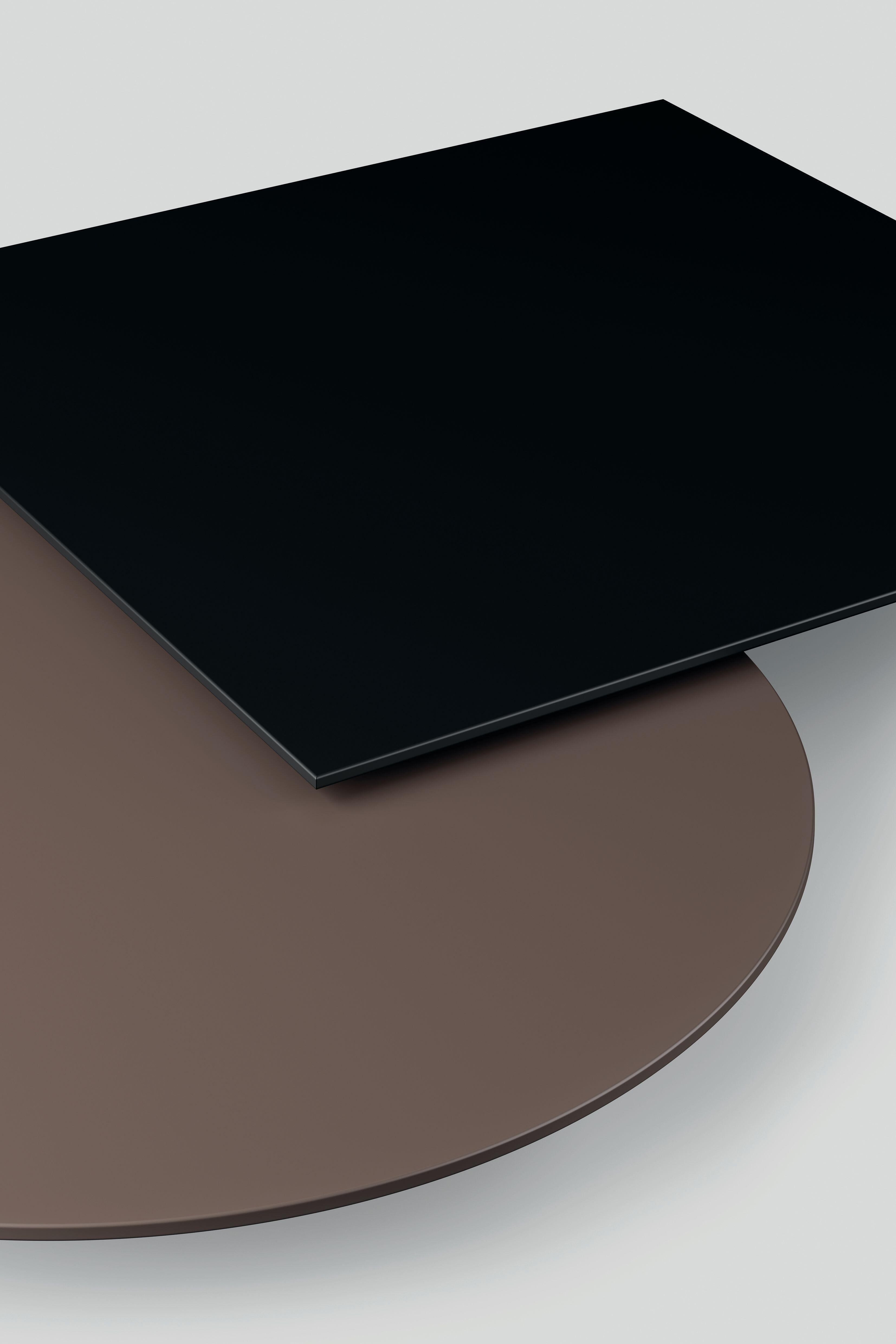

The three shapes are available in different sizes and two finishes, either in matte white painted MDF or Renoir by Infinity® fine porcelain stoneware. While singularly they create a sophisticated light source, in compositions of up to 36 elements Puzzle Mega lamps give life to truly unique and surprising creations.
All Puzzle Mega lamps feature a structure in matte white metal and are fitted with a spacer for the wall or ceiling. The compositions can be developed by overlapping the various lamps using dedicated accessories. The round version is available with diameters 53 and 80 cm, the square version measures either 53 or 80 cm per side, the rectangular version is available in a single size measuring 40 × 80 cm. Depending on the size, each lamp houses 3 to 4 LED light sources, each 17w. The light can be warm, 2700K, or cold, 3000K. The colour rendering index (CRI) of 92 mirrors the true colour of objects without distorting them. The three shapes are available in different sizes and two finishes, either in matte white painted MDF or Renoir by Infinity® fine porcelain stoneware. While singularly they create a sophisticated light source, in compositions of up to 36 elements Puzzle Mega lamps give life to truly unique and surprising creations.
All Puzzle Mega lamps feature a structure in matte white metal and are fitted with a spacer for the wall or ceiling. The compositions can be developed by overlapping the various lamps using dedicated accessories. The round version is available with diameters 53 and 80 cm, the square version measures either 53 or 80 cm per side, the rectangular version is available in a single size measuring 40 × 80 cm. Depending on the size, each lamp houses 3 to 4 LED light sources, each 17w. The light can be warm, 2700K, or cold, 3000K. The colour rendering index (CRI) of 92 mirrors the true colour of objects without distorting them.

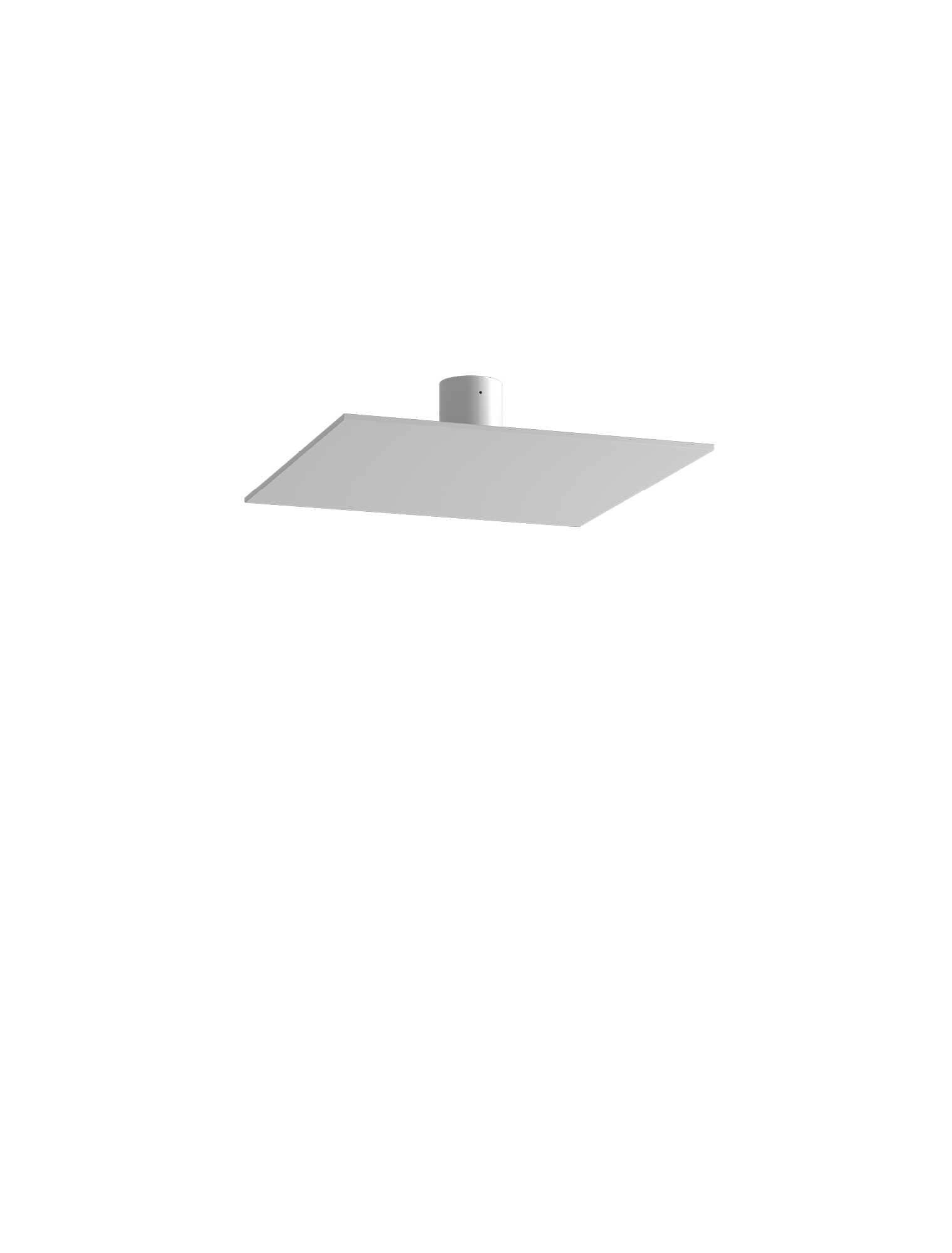

Puzzle Mega Square Small
 |  |  |  |
| 2D FILES | 3D FILES | SPEC SHEET | POLAR DIAGRAM |

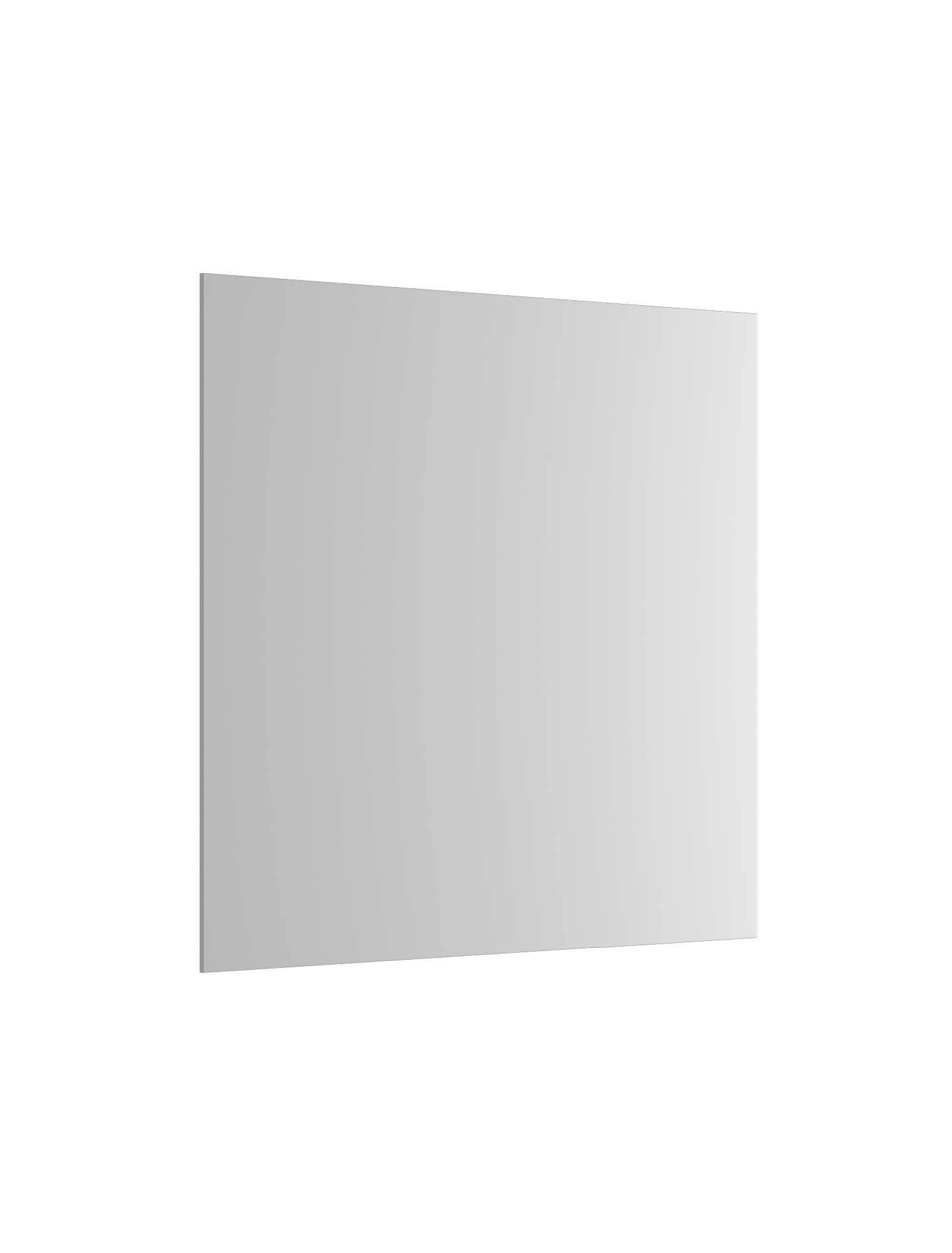

Puzzle Mega Square Large
| | | |
| 2D FILES | 3D FILES | SPEC SHEET | POLAR DIAGRAM |
 |
INSTALLATION INSTRUCTIONS |
