Metallic suspension lamp providing direct and indirect light. Glass shades and integrated dimmable LED. Adjustable height and can be mounted facing upwards or downwards.

T-3714: Suspension lamp with one glass shade.

T-3715: Suspension lamp with two glass shades.

T-3716: Suspension lamp with three glass shades. It has a rotating arm that allows you to install the lamp at an angle.

Ideal for the living room, dining room, kitchen island, bar counter, restaurant, hotel and retail shop.circ-a-3714.png




DRIVERS:

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

671000043 : (2x6,1W) 350mA / 230V / Dimmable Triac Ø 80mm drill on dropped ceiling

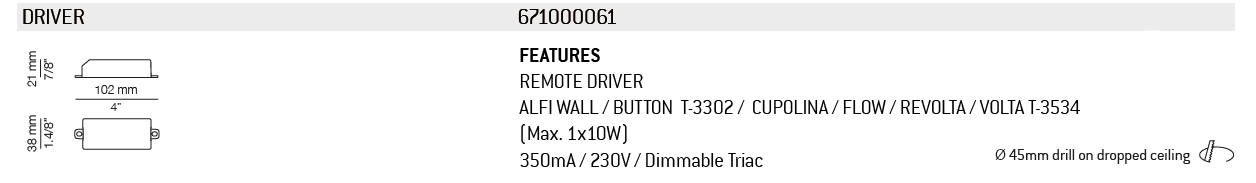

671000061 : REMOTE DRIVER (Max. 1x10W) 350mA / 230V / Dimmable Triac Ø 45mm drill on dropped ceiling

671000056 : DRIVER DALI UPON REQUEST for 6,2W (Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling


T-3714S -  6,2W

Product includes:

• 1 surface canopy 113924XX0

• 1 unit of T-3714

• 1 driver 671000061 / Dimmable Triac - REMOTE DRIVER (Max. 1x10W) 350mA / 230V

• 1 union piece for 2 Circ



T-3714R - 6,2W

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3714

• 1 remote driver 671000061 / Dimmable Triac - REMOTE DRIVER (Max. 1x10W) 350mA / 230V

• 1 union piece for 2 Circ


T-3715S - 6,2W

Product includes:

• 1surface canopy 113924XX0

• 1 unit of T-3715

• 1 driver 671000043 / Dimmable Triac - (2x6,1W)350mA / 230V

• 1 union piece for 2 Circ


T-3715R - 6,2W

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3715

• 1 remote driver 671000043 / Dimmable Triac - (2x6,1W)350mA / 230V

• 1 union piece for 2 Circ


T-3716S - 6,2W

Product includes:

• 1 surface canopy 113924XX0

• 1 unit of T-3716

• 1 driver 671000034 / Dimmable Triac - (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V

• 1 union piece for 2 Circ


T-3716R - 6,2W

Product includes:

• 1 recessed canopy 113534XX2

• 1 unit of T-3716

• 1 remote driver 671000034 / Dimmable Triac - (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V

• 1 union piece for 2 Circ
