With a single, versatile canopy, several glass hemispheres sprawl across a ceiling in custom patterns to illuminate specific areas. The cables connecting the lights are offered in different lengths while the lights are suspended on metal stems. Infnite configurations can be created from this simple and functional design.

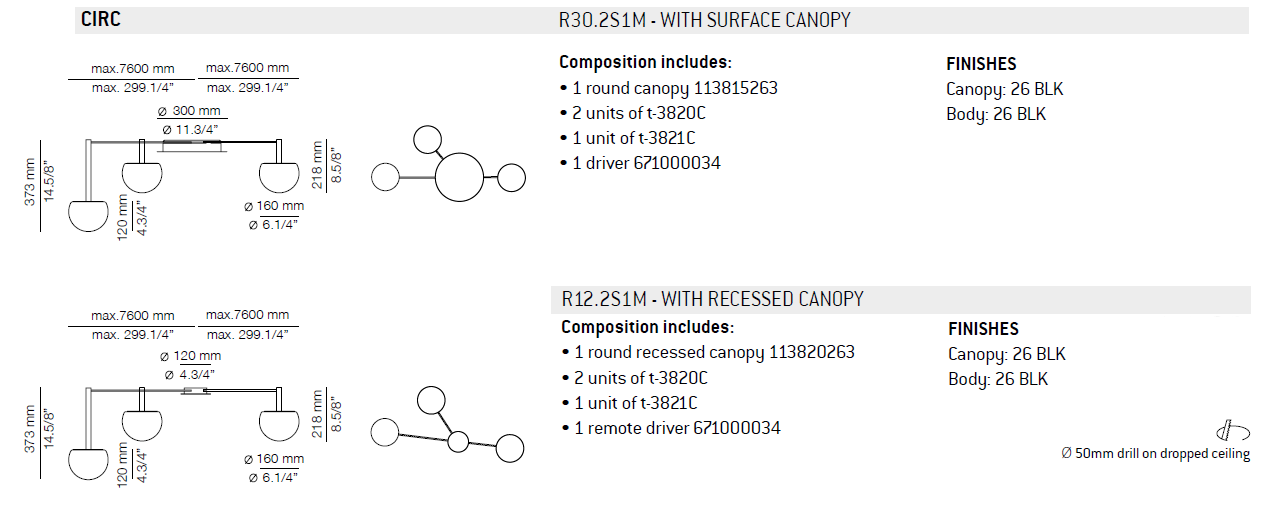

t-3820S / t-3821S: Suitable for indoor locations, it is made of glass shade and a surface canopy of 30 cm in diameter.

t-3820R / t-3821R: Suitable for indoor locations, it is made of glass shade and a recessed canopy of 12 cm in diameter. False ceiling is required to place the remote driver.






DRIVERS:

671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

671000043 : (2x6,1W) 350mA / 230V / Dimmable Triac Ø 80mm drill on dropped ceiling

671000056 : DRIVER DALI UPON REQUEST for 6,2W (Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling

3D FILESSPEC SHEETPHOTOMETRIC CURVE
3D MAXBIM
INSTALLATION INSTRUCTIONS
LED INSTRUCTIONS

ESTILUZ

CATALOGUEPRICELIST
  • DESCRIPTION

    With a single, versatile canopy, several glass hemispheres sprawl across a ceiling in custom patterns to illuminate specific areas. The cables connecting the lights are offered in different lengths while the lights are suspended on metal stems. Infnite configurations can be created from this simple and functional design.

    t-3820S / t-3821S: Suitable for indoor locations, it is made of glass shade and a surface canopy of 30 cm in diameter.

    t-3820R / t-3821R: Suitable for indoor locations, it is made of glass shade and a recessed canopy of 12 cm in diameter. False ceiling is required to place the remote driver.






    DRIVERS:

    671000034 : (Min. 2x6,1W - Max. 3x 6,1W) 350mA / 230V / Dimmable Triac Ø 55mm drill on dropped ceiling

    671000043 : (2x6,1W) 350mA / 230V / Dimmable Triac Ø 80mm drill on dropped ceiling

    671000056 : DRIVER DALI UPON REQUEST for 6,2W (Min. 1x6,1W - Max. 3x6,1W)350mA / 230V / DALI Dimmable Ø 40mm drill on dropped ceiling
